SNW-GFQ Series Single Line Heavy Bag Cutting Machine (non-stretching style)
Characteristic
* Advanced Non-Stretch Tension Control
Equipped with an intelligent tension-free feeding mechanism that completely eliminates material stretching, ensuring absolute length precision and preventing pattern distortion on sensitive or pre-printed films.

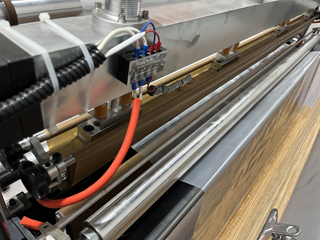

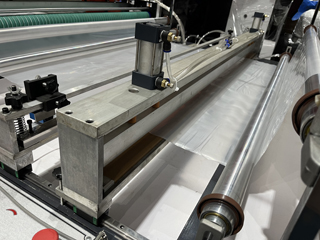

* Precision Heat Sealing & Cold Flying Cut
Features an independent, heavy-duty thermal welding bar for bulletproof bottom sealing, paired with a high-speed mechanical steel knife for a sharp, clean cold cut that guarantees flat, non-curled bag openings.

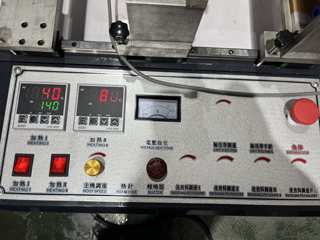

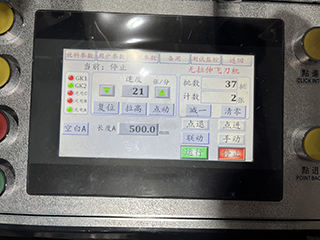

* High-Precision Microcomputer & Servo Drive
Driven by a top-tier servo motor system and a centralized digital microcomputer panel, allowing operators to set exact bag lengths, production speeds, and batch targets with ease.

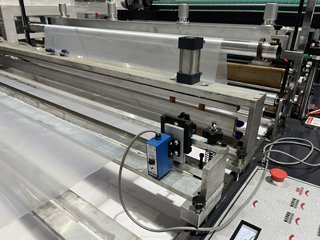

* Sensitive Photo-Eye Tracking System
Includes a highly accurate photographic registration eye that automatically detects color marks on printed films, executing real-time adjustments for flawless sealing and cutting positions.
Use
* Fast-Food & Fried Snack Packing
The ultimate industry standard for producing greaseproof paper sacks, French fry pouches, fried chicken bags, and hamburger wraps for quick-service restaurants like KFC and McDonald’s.
* Bakery, Bread & Pastry Pouches
Perfect for the continuous manufacturing of kraft paper bread sleeves, croissant bags with optional clear plastic windows, and donut retail sacks.
* Grocery Sacks & Air Sickness Bags
Widely used for fabricating plain brown grocery carrier sacks, retail hardware item envelopes, and specialized plastic-lined airline sickness bags.
* Pharmacy & Medical Prescription Bags
Ideal for mass-manufacturing small-scale, clean-gauge paper medication pouches and prescription counter bags for pharmacies and clinics.
Main Technical Parameters
型号 | Model | SNW-GFQ600 | SNW-GFQ800 | SNW-GFQ1000 | SNW-GFQ1500 |
最大制袋宽度 | Max. Bag Width | 500mm | 700mm | 900mm | 1400mm |
最大制袋长度 | Max. Bag Length | 1200mm (Can be customizable make according to customer’s requirement) | 100mm (Can be customizable make according to customer’s requirement) | 1500mm (Can be customizable make according to customer’s requirement) | 1500mm (Can be customizable make according to customer’s requirement) |

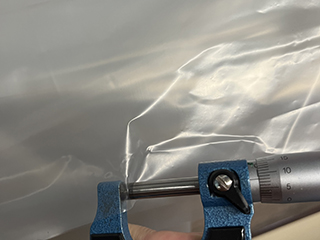

制袋厚度 | Bag-cutting Thickness | 0.01mm-0.30mm | 0.01mm-0.30mm | 0.01mm-0.30mm | 0.01mm-0.30mm |
制袋速度 | Bag-cutting Speed | 30-180pcs/min | 30-150pcs/min | 30-150pcs/min | 30-120pcs/min |
长度误差 | Error in Length | ±1mm | ±1mm | ±1mm | ±1mm |
主电机功率 | Main Motor | 1.5KW | 1.5KW | 1.5KW | 1.5KW |
变频器 | Main Inverter | 1.5kw | 1.5kw + 0.75kw | 1.5kw + 0.75kw | 1.5kw +1.5kw |
驱动形式 | Driving system | Servo motor driving 2.3kw | Servo motor driving 2.3kw | Servo motor driving3.8kw | Servo motor driving3.8kw |
总功率 | Total Power | 8KW | 8KW | 10KW | 12kw |
电源电压 | Machine Voltage | 220V single phase | 220V single phase | 220V single phase | 220V single phase |
机器重量 | Weight | 800KG | 900KG | 1000KG | 1300KG |
外形尺寸 | Dimension | 3.3m×1.2m×1.8m | 3.3m×1.4m×1.8m | 3.3m×1.6m×1.8m | 3.3m×2.0m×1.8m |
Product Video

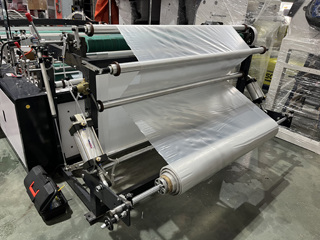

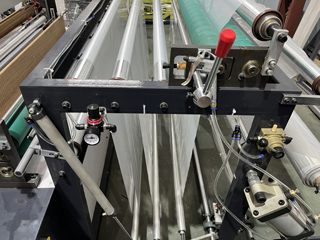

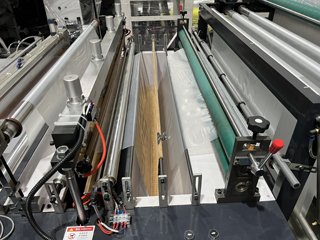

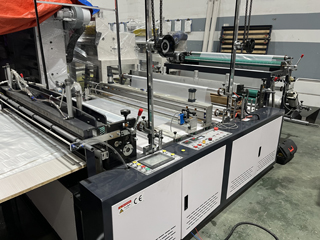

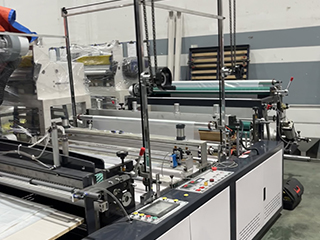

Product Showcase

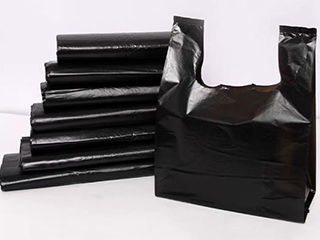

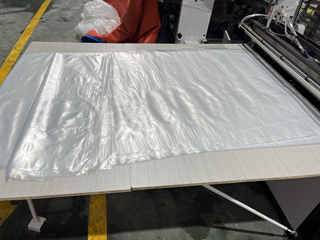

Sample Picture
